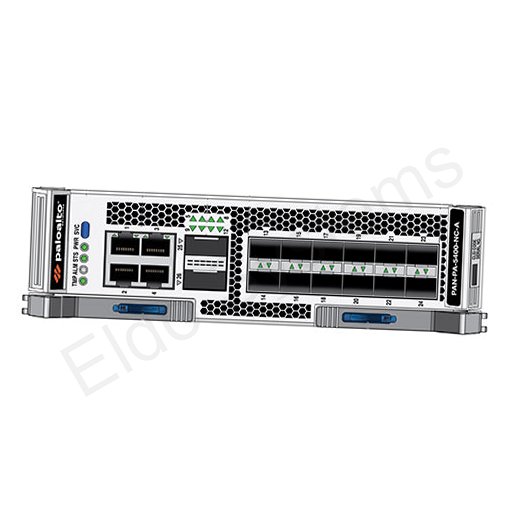

The PA-5400-NC-A is a networking card (NC) that provides network connectivity for a PA-5450 firewall. You can install up to two NCs in a PA-5450 firewall. The PA-5400 NC-A provides up to 100Gbps Ethernet connectivity. Please note that at least one NC is required for the firewall to process network traffic.
| Role | Networking Card (NC) with high‑speed data ports |
| Port mix | QSFP28 (40/100GbE) and SFP28 (10/25GbE) |
| Per‑system quantity | Up to 2 NC modules in a PA‑5450 |
| Hot‑swap | Field‑replaceable, online replacement supported |
| Compatibility | PA‑5450 firewall chassis |
| Use cases | Core/aggregation uplinks and high‑density interfaces |
| Interfaces | Combination of 100GbE QSFP28 and 10/25GbE SFP28 ports (breakout supported per PAN‑OS) |
| Transceiver support | SR/LR/ER optics; DAC/AOC cables per interface type |
| Features | LACP, LLDP, VLANs, sub‑interfaces, jumbo frames |
| LEDs | Per‑port link/activity/speed indicators |
| Installation | Front‑slot module; captive screws/latch |
| Max NCs per system | Up to two in PA‑5450 (slot dependent) |
| Operating temperature | 0°C to 40°C |
| Power | Powered via chassis backplane |
| Compliance | RoHS, CE, FCC |
| Notes | Data plane connectivity provided through NC; no management ports |
Yes, the Palo Alto PA-5400-NC-A Module is currently in stock and available for immediate shipment from our Boulder, CO warehouse. Same-day shipping on orders placed before 2pm MT.
This PAN-PA-5400-NC-A is professionally refurbished or new-surplus enterprise hardware. Every unit is fully tested, factory-reset, and inspected before shipping. Cosmetic blemishes (rack marks, minor scuffs) may be present but never affect functionality.
The PAN-PA-5400-NC-A comes with the Eldo Systems Lifetime Warranty covering hardware defects. We are an independent reseller — manufacturer warranties do not apply, but our lifetime coverage matches or exceeds typical OEM terms.
Free ground shipping on every order, included in the price. Orders ship same-day if placed before 2pm MT (Mon–Fri). Expedited overnight and 2-day options are available at checkout for urgent deployments.
Yes — we ship worldwide. International orders are quoted individually so we can present accurate freight, duties, and lead time. Use the Request a Quote form or call (484) 630-1533 to start.
Absolutely. We offer volume discounts and project pricing for resellers, integrators, and end-users buying in quantity. Submit a quote with your target quantity and our team will respond within 15 minutes during business hours.
Get the PAN-PA-5400-NC-A from Eldo Systems with lifetime warranty and free ground shipping.
